Rotarod Apparatus
(RR-01)
Rotarod Apparatus with Acceleration Mode
(RR-02)

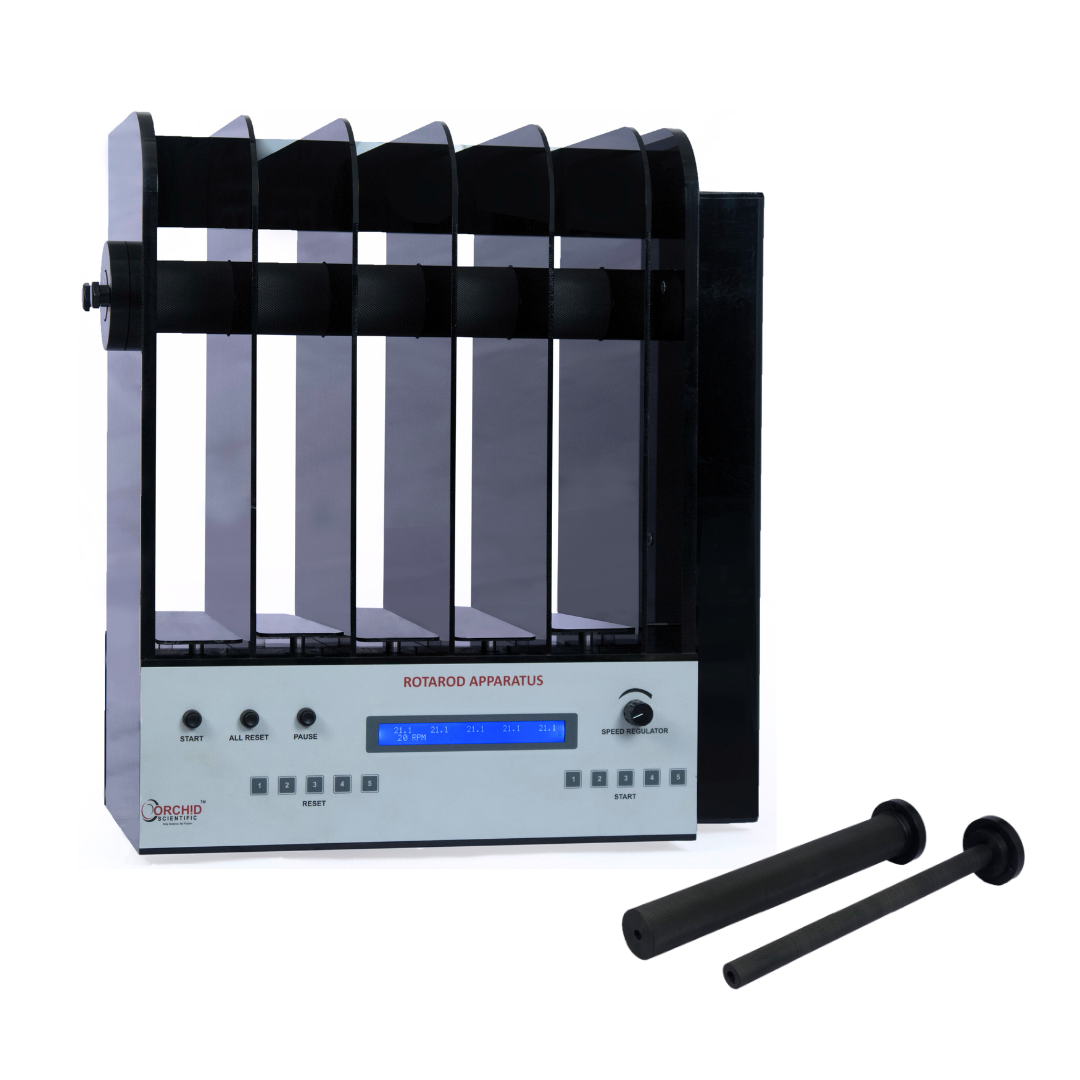

Rotarod Apparatus (RR-01)
Features
- Same instrument can be used for mice as well as rat just by changing the rotor
- Five Lanes
- Mechanical detection of fall
- Individual lane timers (0-9999.9s) with resolution of 0.1s
- Electronic rod speed adjustment- constant speed (2-60 rpm)
- Software for real time data transfer
- Easy replacement of rotor
System Specification & Models
| Specifications | Model |
| RR 01 | |
| Number of lanes | Five |
| Speed | 2 - 60 rpm |
| Timer | 0 - 9999.9s (resolution - 0.1s) |
| Rotor specifications | Mice rotor- 30mm diameter
Rat rotor - 60mm diameter |
| Lane width | 75 mm |
| Height to fall | For Mice: 285 mm
For Rat: 300 mm |
| Display | LCD |
| Material of composition | Methacrylate, Aluminium |
| Certifications | CE Compliant |
| Power requirements | 220/230V AC 50Hz
110/110v AC 50 - 60Hz* |
| Overall Dimensions | 570 x 300 x 590 mm |
*Needs to be specified in order information
Order Information
| Model | Accessories |
| RR 01 | Basic instrument-1
Mice rotor-1 Rat rotor -1 Tools for assembling Software for data transfer RS 232 Cod-1 RS232 to USB convertor-1 |
Note: Orchid’s continuing product development makes specifications subject to change without prior notification.
Digital Rota Rod Apparatus :
1.Singh, K.P., Meena, H.S. and Negi, P.S., 2014. Enhancement of neuromuscular activity by natural specimens and cultured mycelia of Cordyceps Sinensis in mice. Indian journal of pharmaceutical sciences, 76(5), p.458

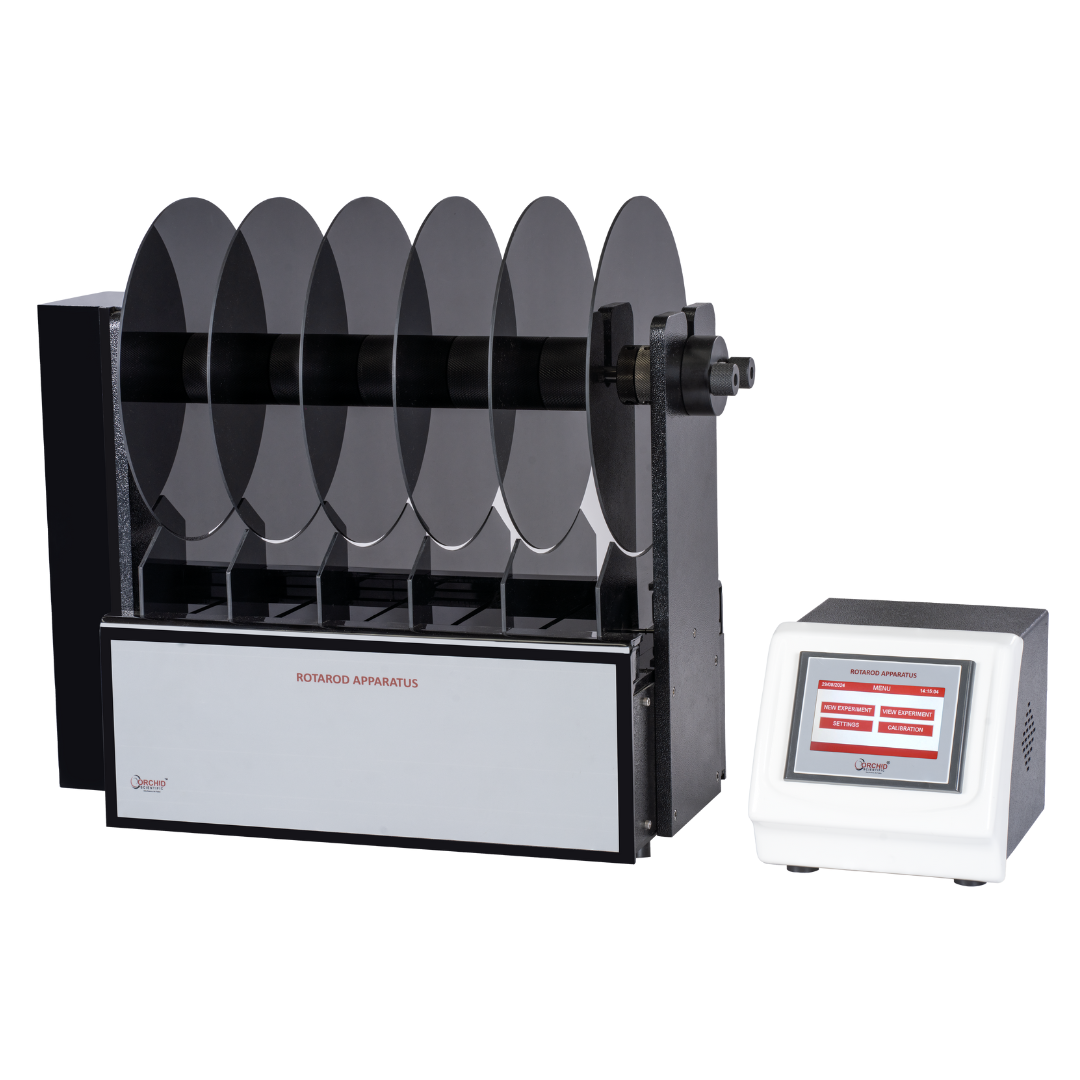

Rotarod Apparatus with Acceleration Mode (RR-02)
Features
- Same instrument can be used for mice as well as rat just by changing the rotor
- Five compartment model
- Six modes of operation (Normal /Acceleration 1/ Acceleration 2/ Reverse Acceleration/ Multistep/ Rocking)
- Animal selection facility (Mice/Rat)
- Forward & reverse direction of rotation
- Facility of compartment coding (001 to 999)
- Individual lane timers (0-999.9sec) with resolution of 0.1s
- Precise data of falling time, falling speed and distance travelled
- Electronic rod speed adjustment- constant speed (0.1 to 80.0 RPM)
- Password protected software and admin features
- Software for data collection & report generation
- Calibration report generation facility in the software
- Graphical presentation of data
- Provision to add experiment Title & comment
- Data can be converted to excel & Pdf file for further analysis
- Fixed speed selectable from 0.1 to 80 rpm can be set.
- User can set the speed to be achieved in selected acceleration time starting from 0 rpm. For example, if user sets End speed as 40 and acceleration time as 60 sec then, rotor will start from 0 rpm; individual lane timers will also start same time and rotor will reach 40 rpm speed in 60 seconds. Once rotor achieves 40 rpm, it will continue at 40 rpm up to the cutoff time.
- User can set the speed to be achieved in selected acceleration time starting from 0 rpm. Lane timers will start at the time when rotor achieves the speed of 1/10th of the End Speed. As the animal falls, time measurement of the corresponding lane will stop.
- For example, if user sets End Speed as 40 and acceleration time as 60 sec then, rotor will start from 0 rpm and will achieve 1/10th of End speed as 4rpm. Rotor will keep rotating at 4rpm and as user selects Start key, individual lane timers will start and rotor will reach 40 rpm speed in 60 seconds. Once rotor achieves 40 rpm, it will continue at 40 rpm up to the cutoff time.
- In Reverse Acceleration Mode the rotor will start rotating from start rpm and will achieve the end rpm in given ramp time with selected direction of rotor. After rotor achieves the end rpm it again starts decreasing towards start rpm and reach start rpm in same ramp time interval. Then it wait for 1 sec and again reach to end rpm in same ramp time interval in reverse direction. After rotor achieves end rpm it again starts decreasing towards start rpm and reach start rpm in same ramp time interval.
- In multistep mode, user can Set the 5 different RPMs and Ramp time and the system will rotate at selected rpm w.r.t to individual Ramp time.
- In this mode rotor rotates in forward direction with no. of selected revolution with set speed and again the rotor rotates in reverse direction with no. of selected revolution with set speed and continue till cutoff time.
Normal Mode
Acceleration Mode I:
Acceleration Mode II:
Reverse Acceleration Mode
Multistep Mode
Rocking Mode
| Parameter | Mode | ||
| Normal | Acceleration I | Acceleration II | |
| Speed | 0.1-80 rpm (selectable fixed) | 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80 rpm | 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80 rpm |
| Acceleration Time | N.A. | 60, 120, 180, 240, 300 sec | 60, 120, 180, 240, 300 sec |
| Cut Off Time | 1.0 sec to 999.9 sec | 301.0 sec to 999.9 sec | 301.0 sec to 999.9 sec |
| Parameters recorded | Date, Mode, Test number, End speed, Acceleration time, Start and End time, Falling speed, Time spent on rotar, Distance travelled. | ||
System Specification & Models
| Specifications | Model | |||
| RR02-M | RR02-R | RR02 | RR02 IR | |
| Animal | Mouse | Rat | Mouse & Rat | Mouse & Rat |
| Number of lanes | 5 | 4 | 5 | 5 |
| Rotor Speed Accuracy | ±1.0 rpm | |||
| Rotor Speed Resolution | 0.1 rpm | |||
| Falling Time | 0-999.9sec (resolution-0.1sec) | |||
| Distance Travelled | 0.1 cm to 99999.9 cm | |||
| Rotor Diameter |
30 mm
|
60 mm | Mouse: 30 mm Rat: 60 mm |
Mouse: 30 mm Rat: 60 mm |
| Lane Width | 57 mm | 87 mm | Mouse: 50 mm Rat: 76 mm |
Mouse: 50 mm Rat: 76 mm |
| Falling Height | 180mm | 320mm | Mouse: 225mm Rat: 240mm |
Mouse: 225mm Rat: 240mm |
| Lane Separator Diameter | 250mm | 310mm | 290mm | 290mm |
| Fall Detection Sensor | Plate type | Plate type | Plate type | Infra red |
|
Overall Dimension (LxWxH) |
580mm X 300mm X 465mm | 580mm X 310mm X 510mm | 580mm X 300mm X 520mm | 580mm X 300mm X 520mm |
| Display | 4.3 inches TFT, Touch screen | |||
| Material of Construction | Acrylic | |||
| Power requirements |
220/230V AC 50Hz 110/120 V AC 50-60Hz*
|
|||
| PC Connectivity | By using RS232 | |||
*Needs to be specified in order information
Order Information
| Model | Accessories |
| RR 02 | Basic instrument-1
Mice/Rat rotor as per model selected Tools for assembling Software for data transfer RS232 Cable With Converter |
Note: Orchid’s continuing product development makes specifications subject to change without prior notification.
