Mice and Rat Restrainers
Immobilization of experiment animal is required in many pharmacological and physiological experiments. To satisfy this need, Orchid has launched different categories of optimized animal restrainers. All rodent restrainers are manufactured from clear perspex materials to provide complete visual awareness of the state of your animal.

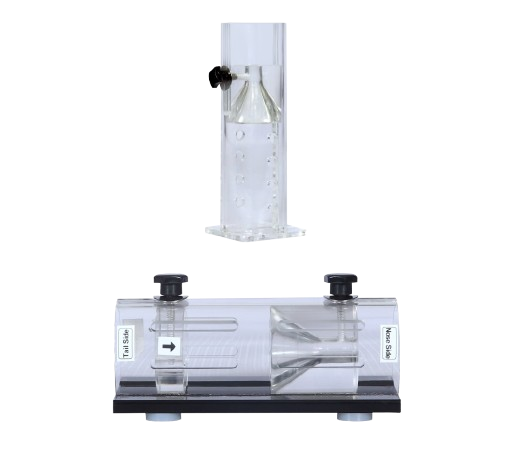

Broom Style (Tail Access Type)
Broom Restrainers provide fast and easy animal insertion. The cylindrical design of these restrainers solves the problem of the rodents turning once they are introduced into the Restrainer. One side of restrainer is fixed with transparent tail piece (perspex plate) having a slot for tail while the other side fitted with a Head piece (bush) having a smooth conical shape from inside for positioning the head of rodent. Head piece can be adjusted according to size of animal and tightened using the black colour knob.
Features
- Ease of use and access to the rodent
- Safety for the animal handler
- Thickness of 5mm
Model No. | Animal Weight Range | Restraining ID (mm) | Length Min x Max (mm) |
SAR15B | 15g to 30g | 25 | 50×92 |
SAR30B | 30 g to 70g | 30 | 59×106 |
SAR70B | 70 g to 125 g | 40 | 60×129 |
SAR125B | 125 g to 200 g | 50 | 97×166 |
SAR250B | 200 g to 250 g | 65 | 125×185 |
This product may also be searched with keywords as Mice and Rat Restrainers, Mice Restrainers, Laboratory Animal cages, Mice cages, Rat Cages, Rabbit cages, Guinea Pig Cages, Vivarium, Vivarium Products, Lab Animal Vivarium, Lab Animal House Equipments, laboratory animal cages and equipments, lab animal furniture, animal restrainers, NIBP restrainer, tail vein injection
Flat Bottom Restrainer (Head and Tail Adjustable Type)
Flat bottom restrainers are manufactured from perspex cylinders mounted on a flat black perspex base. All the models have free access through both extremes, by opening the respective tilting door that is fixed by a screw at the upper part of the restrainer.
Animals can be immobilised by sliding the doors along the restrainer. A slot in the base of the door allows for the whole tail to be available for the pulse transducer and cuff installation, the i.v. drug administration or the blood extraction.
The easy operation of the doors and its disposition on the extremes of the restrainer makes the manipulation of the animal convenient and avoids the animal to be dragged backwards, protecting it from injuries in the feet.
Features
- Both head and tail piece can be adjusted
- More exposure of animal area in comparison to any other kind of restrainer
- Screw and rod system provided for adjusting the head and nose piece is more fast and easier in comparison to single knob system as in case of broom type restrainer
Model No. | Animal Weight Range | Restraining ID (mm) | Total Length (mm) |
SAR15F | 15g to 30g | 30 | 42×87 |
SAR30F | 30 g to 70g | 40 | 50×97 |
SAR70F | 70 g to 125 g | 50 | 70×142 |
SAR125F | 125 g to 250 g | 65 | 103×160 |
SAR250F | 250 g to 500 g | 72 | 80×202 |
Note: Restraining ID may vary by +/- 2mm & length(min*max)may vary by +/- 5mm
