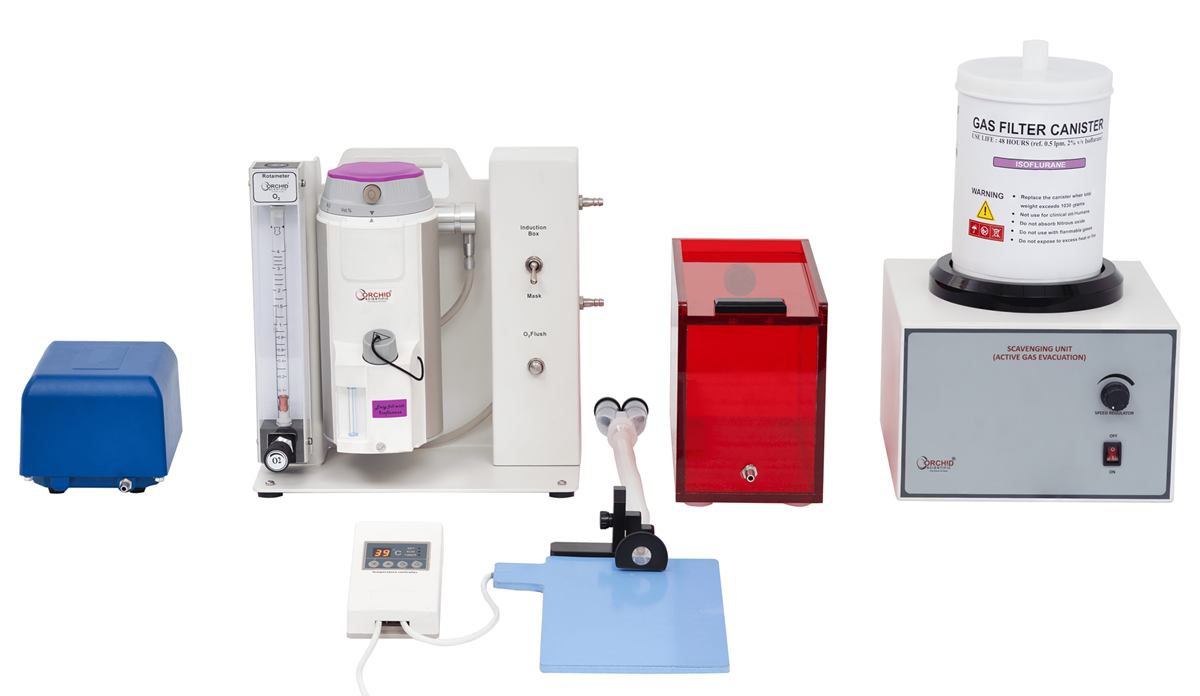

GAS ANESTHESIA SYSTEM FOR RODENTS
Orchid’s gas anesthesia system for rodent is one of the safest, user friendly and the most economical gas anesthesia system in the market. Our system successfully integrates efficient gas delivery at the same time minimizing excess gas exposure to lab personnel.
Features
Compact & modular
TEC3 vaporizers with Key fill adaptors, minimizing exposure to anesthetic agents
Table top or Trolley mounted options available
Depth of anesthesia can be easily adjusted
Suitable for different animals, by changing masks or induction chamber
Suitable for multiple animals using multichannel manifold
Options of oxygen concentrator or air pump available eliminating need of gas tank
Every anesthesia procedure needs following components to conduct an induction phase and a maintenance phase
Anesthetic Vaporizer with flow meter
Gas Evacuation/ Scavenging system(for gas anesthetic removal)
Induction box and/or mask with breathing circuit

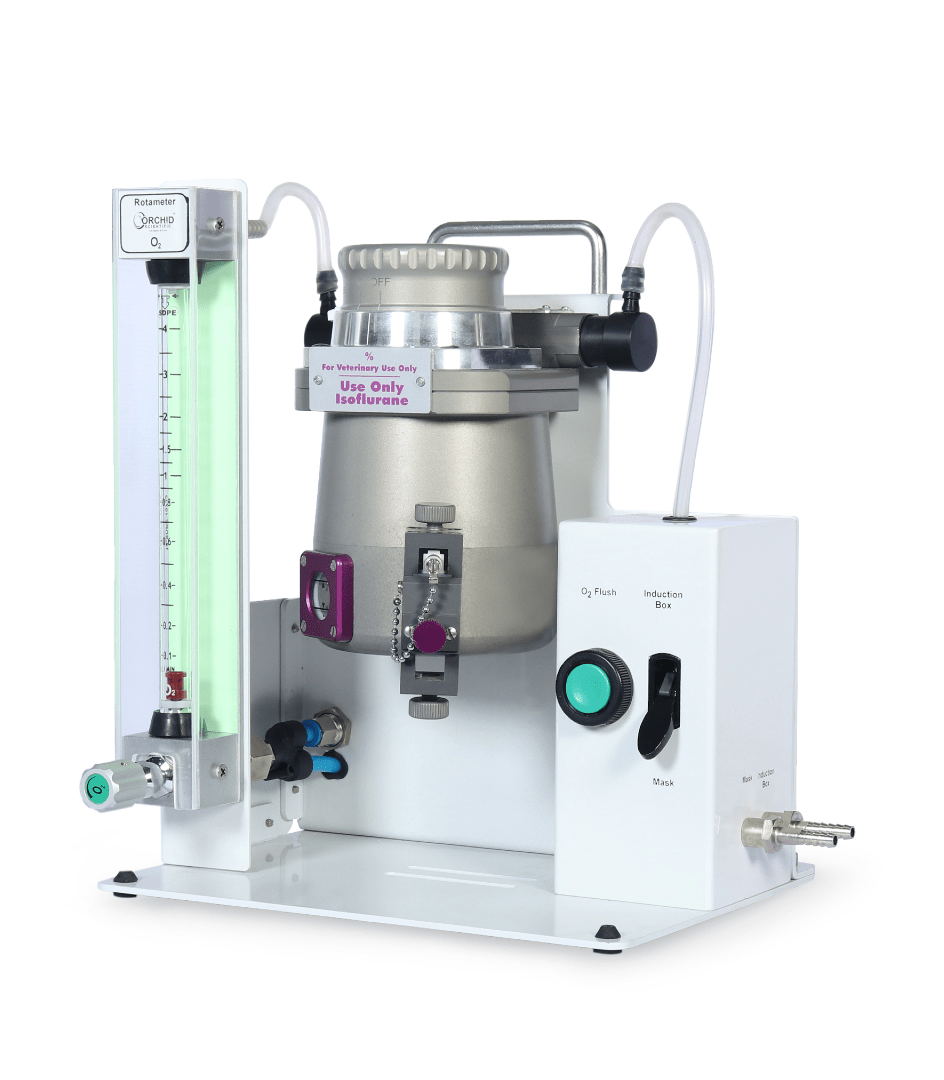

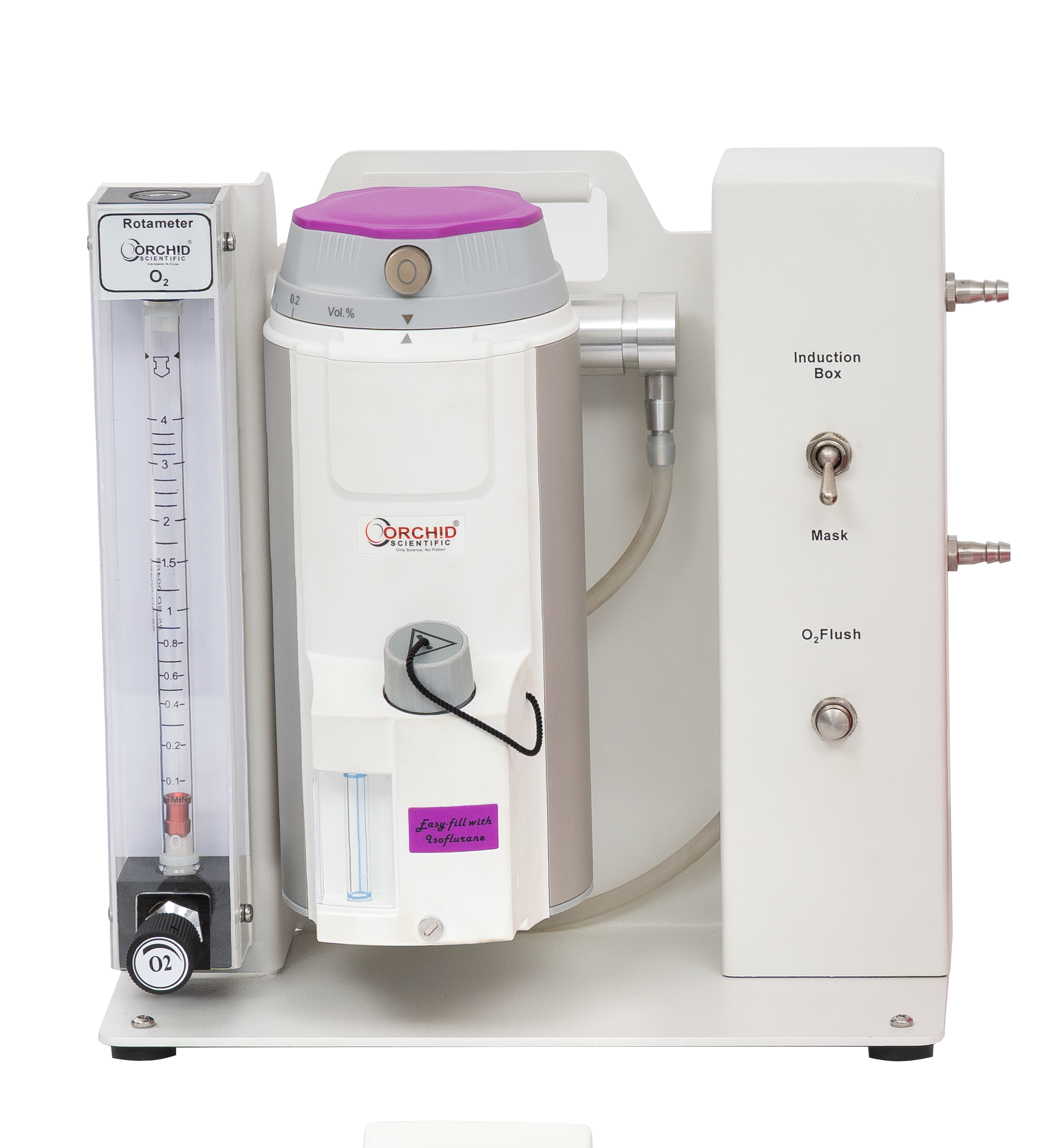

Anesthesia Vaporizer Module
Comprises of oxygen flow meter, vaporizer, stand, end caps, toggle switch and quick flush switch.
Quick flush switch enables immediate delivery of oxygen either to flush the anesthetic agent in the induction chamber to evacuation unit or to recover the animal in emergency. Toggle switch allows convenient and immediate switch over between induction chamber and mask.
A precise and calibrated flow meter of range from 0.1 to 4.0LPM with large scale for precision and ease of reading is mounted on the Anesthesia module.
New Tec 3 Vaporizer
We offer new Tec3 key fill anesthetic vaporizer made from lightweight aluminum.
It has one piece sump for added strength.
Calibrated specifically for Isoflurane using a Laser Refractometer.
Safety lock to prevent accidental turn-on of dial.
When used with the I.P.P.V. the variation in outputs is negligible.
150ml of drug capacity
They provide accurate delivery of anesthetic agent in following range: from 0.5%-5% in 0.5% increments.
Euthanasia Anesthesia Vaporizer Module
Comprises of oxygen and carbon dioxide flow meter, vaporizer, stand, end caps, switch, etc. Useful for carrying out euthanasia & anesthesia on small rodents
| Product | Product Code | Accessories included |
| Anesthesia Vaporizer Module | AVM-01 | Stand, vaporizer, oxygen flowmeter, end caps, quick flush switch, vaporizer mounting gaskets, screws, silicon tube |
Gas Evacuation System
Induction chamber
Nose Cone Mask
Manifold for Multiple Masks
Oxygen Source
Stainless Steel Trolley for Anesthesia System
Anesthesia and Euthanasia System

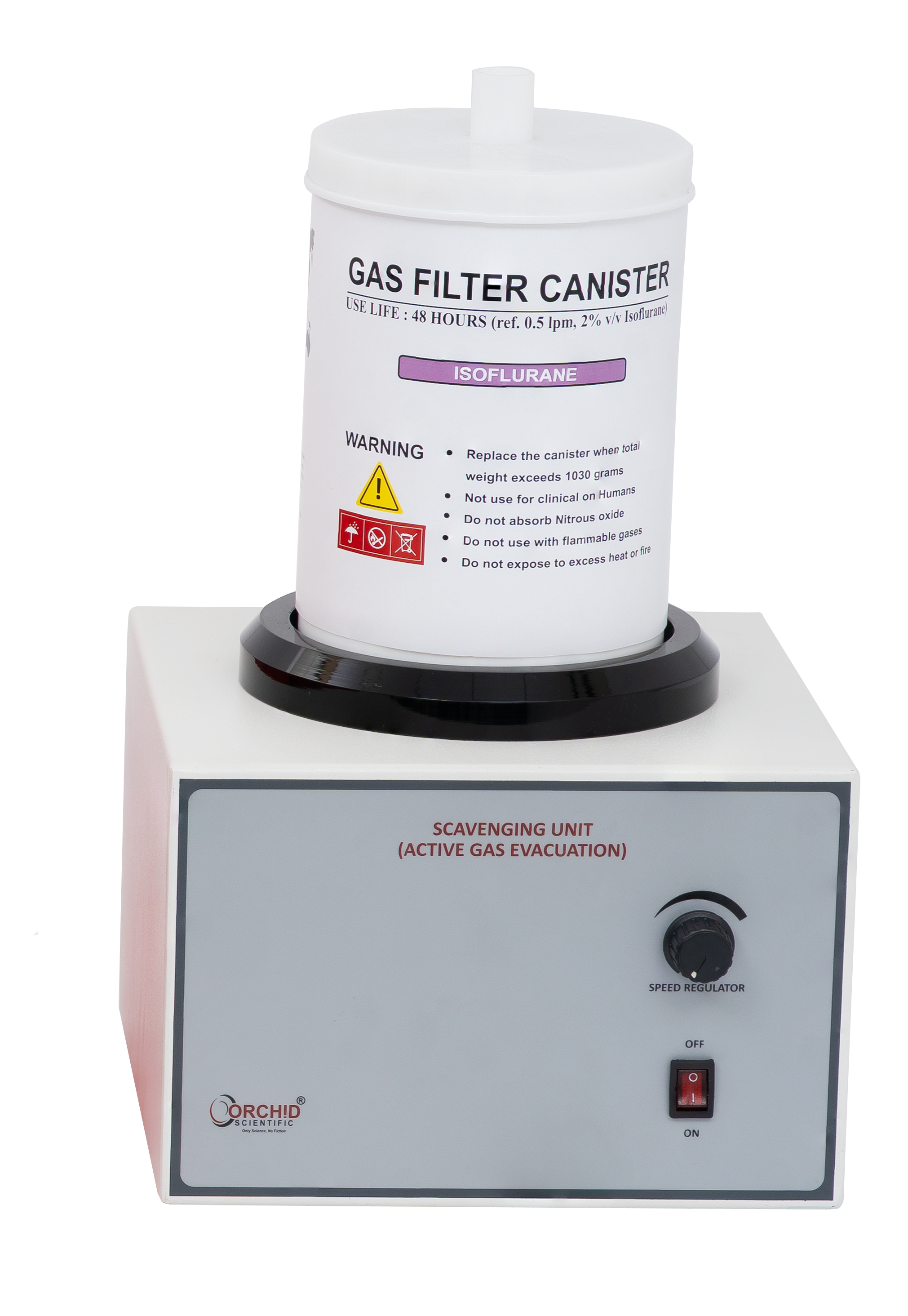

Gas Evacuation System
The scavenging system is designed for the removal of waste gas associated with inhalation anesthesia, safely and actively. It consists of Gas Evacuation Apparatus and Activated Charcoal Canister. The Gas Evacuation System can pull the waste gas through activated charcoal canister so that air can be recirculated into the room.
| Product | Product Code | Accessories included |
| Gas Evacuation Apparatus, 110 - 240V with 1 pc of Gas filter canister | FXA - 01 | Gas evacuation unit with main cord, 1pc of filter canister |
| Optional | ||
| Gas filter canister 830g, large, 1pc | GASF - 01 | 1pc of gas filter canister |
| Gas filter canister, large, Packet of 6pc | GASF - 06 | 6pcs of gas filter canister |
This product may also be searched with keywords as anesthesia machine for rodents, small animal anesthesia machine, Isoflurane vaporizer, rodent anesthesia machine, mice anesthesia system, rat anesthesia system, neuroscience research equipments, isoflurane anesthesia system, isoflurane anesthesia system for small rodents, isoflurane anesthesia system for mice, isoflurane anesthesia system for rat, mouse anesthesia machine, veterinary anesthesia machine, rodent anesthesia, laboratory animal anesthesia and ventilator system, rodent ventilator, gas anesthesia for rodents, guinea pig anesthesia, isoflurane, nose cone mask, induction chamber, anesthesia induction.

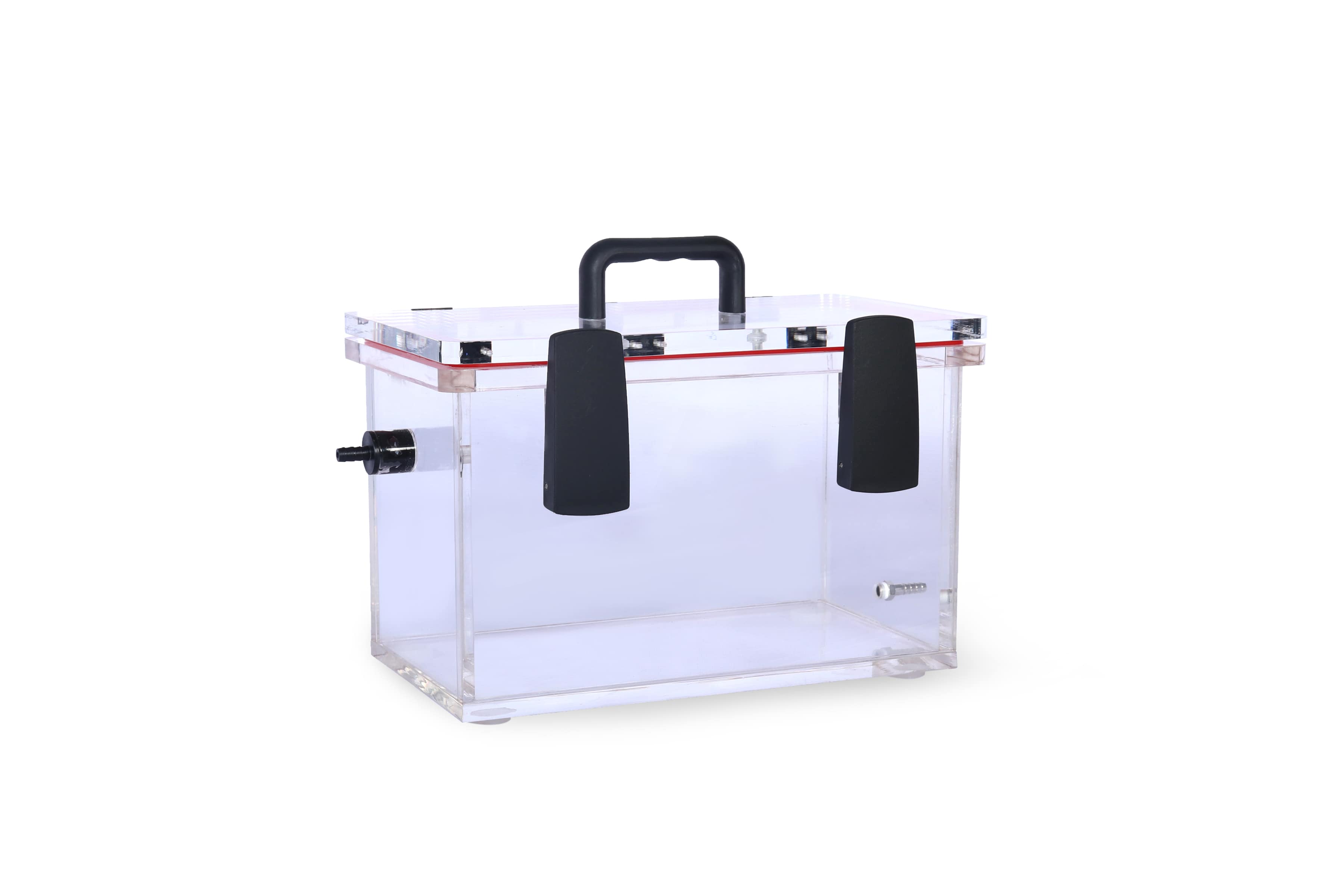

Induction chamber
Induction chamber makes it possible to anesthetize rodents without stress often associated with handling in connection with anesthesia.
Induction Chamber is constructed of thick, transparent plastic, with all joints securely cemented. The transparent plastic allows the animal to be under constant observation.
| Product | Product Code |
| Suitable for mouse/ neonatal rat Inner dimensions: 4.72” X 3.93” x 4.72” (12 x 10 x 12cm) | ANS-1A |
| Suitable for rat up to 300g, Inner dimensions: 9.05” x 4.33” x 6.69” (23 X 11 X 17cm) | ANS-1B |
| Suitable for rat up to 500g/ guinea pig up to 350g, inner dimensions: 11” x 5.75” x 7” (27.94 × 14.60 × 17.78) | ANS-2A |
| Suitable for Large rat (above 500g)/ Guinea pig (above 350g), inner dimension: 16” x 8” x 8” (40.64 × 20.32 × 20.32) | ANS-3 |

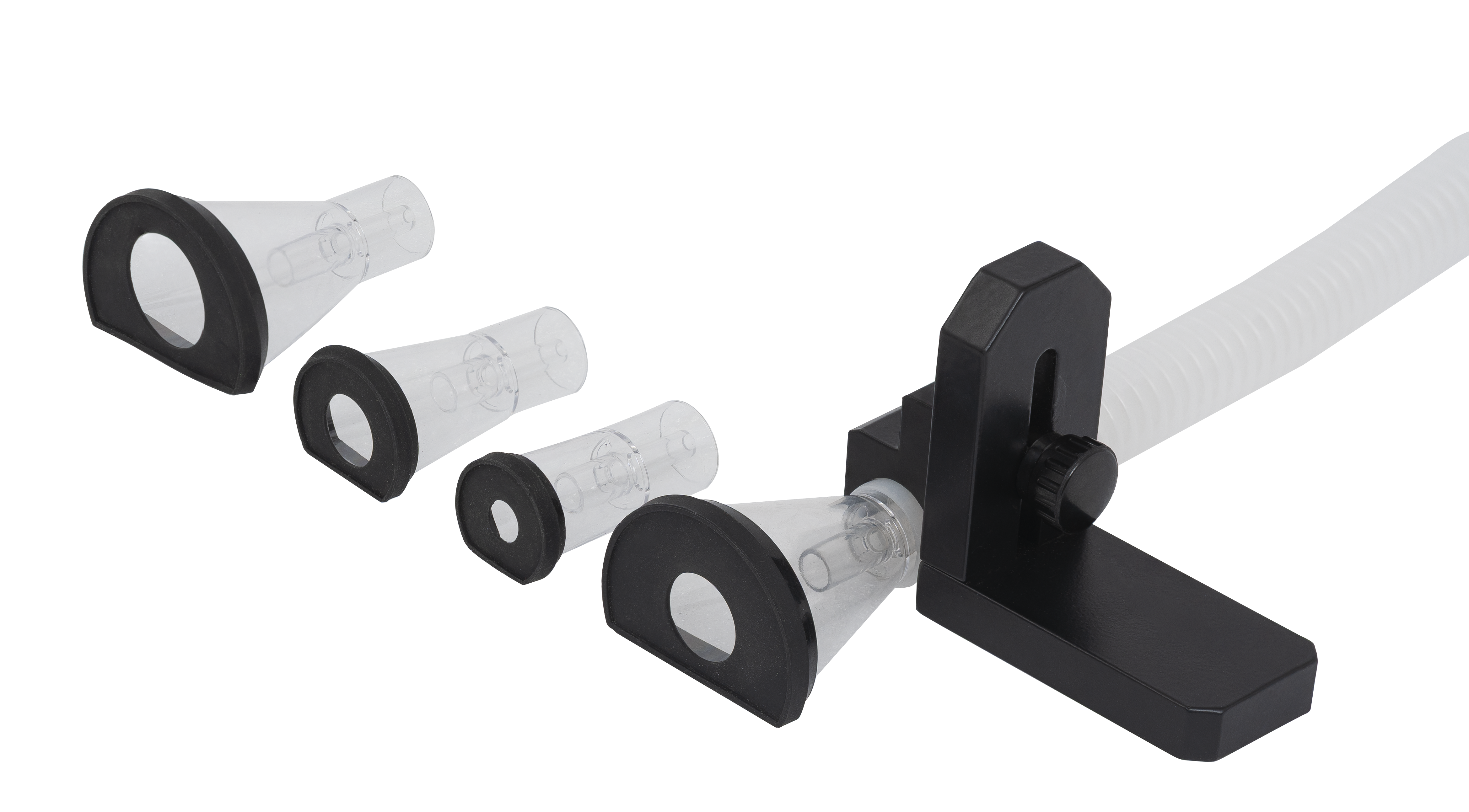

Nose Cone Mask
Mask provides predictable delivery of anesthesia for small laboratory animals. The stream lined flow eliminates any dead space in the mask, avoiding the need for tight fitting face masks.
Orchid’s nose cone mask is made from transparent material with openings from soft black silicone material making it comfortable for animal. Each mask has separate inlet for delivery of anesthetic agent and outlet for connecting to Gas Evacuation System so that exposure of anesthetic agent to the researchers will be avoided. Single channel stand is also available for holding the mask of any of the size and to adjust the position of the mask as needed.
| Product | Product Code |
| Size 1: Nose cone mask for mouse, Diameter 25mm x length 66mm, exposure area 5mm, suitable for animal of weight range 15-40g | NCON-A |
| Size 2: Nose cone mask for mouse/ neonatal rat, Diameter 25mm x length 56mm, exposure area 10mm, suitable for animal of weight range 40-100g | NCON-B |
| Size 3: Nose cone mask for rat, Diameter 30mm x length 56mm, exposure area 17mm, suitable for animal of weight range 100-300g | NCON-C |
| Size 4: Nose cone mask for large rat/ Guinea pig , Diameter 40mm x length 56mm, exposure area 24mm, suitable for animal of weight range 300-450g | NCON-D |
| Size 5: Mask for Rabbit | NCON-E |
| Breathing bag and endotracheal tube for Rabbit mask | RAB-AC-01 |
| Single Channel stand- suitable for one mouse/ rat mask | NCT-1 |

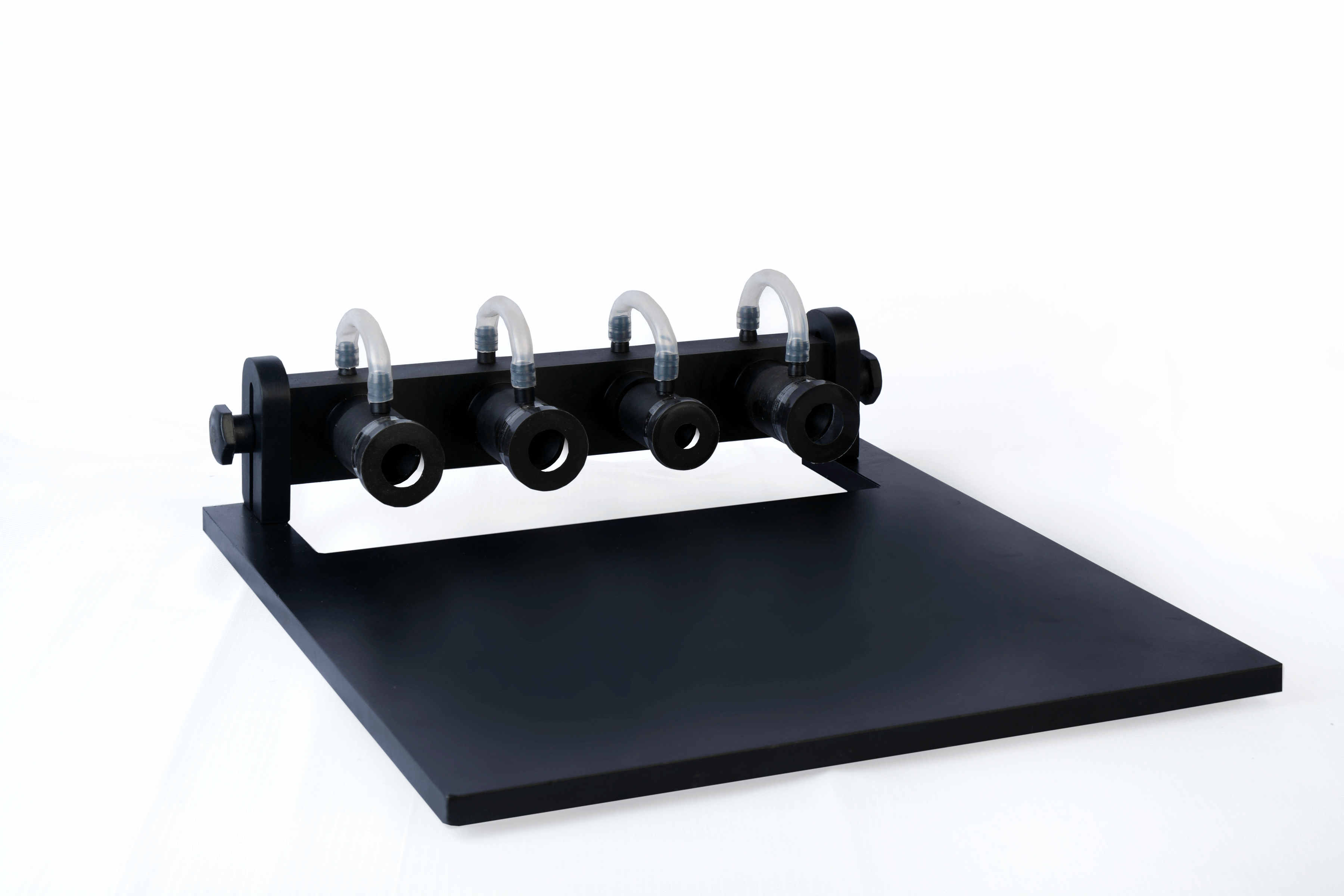

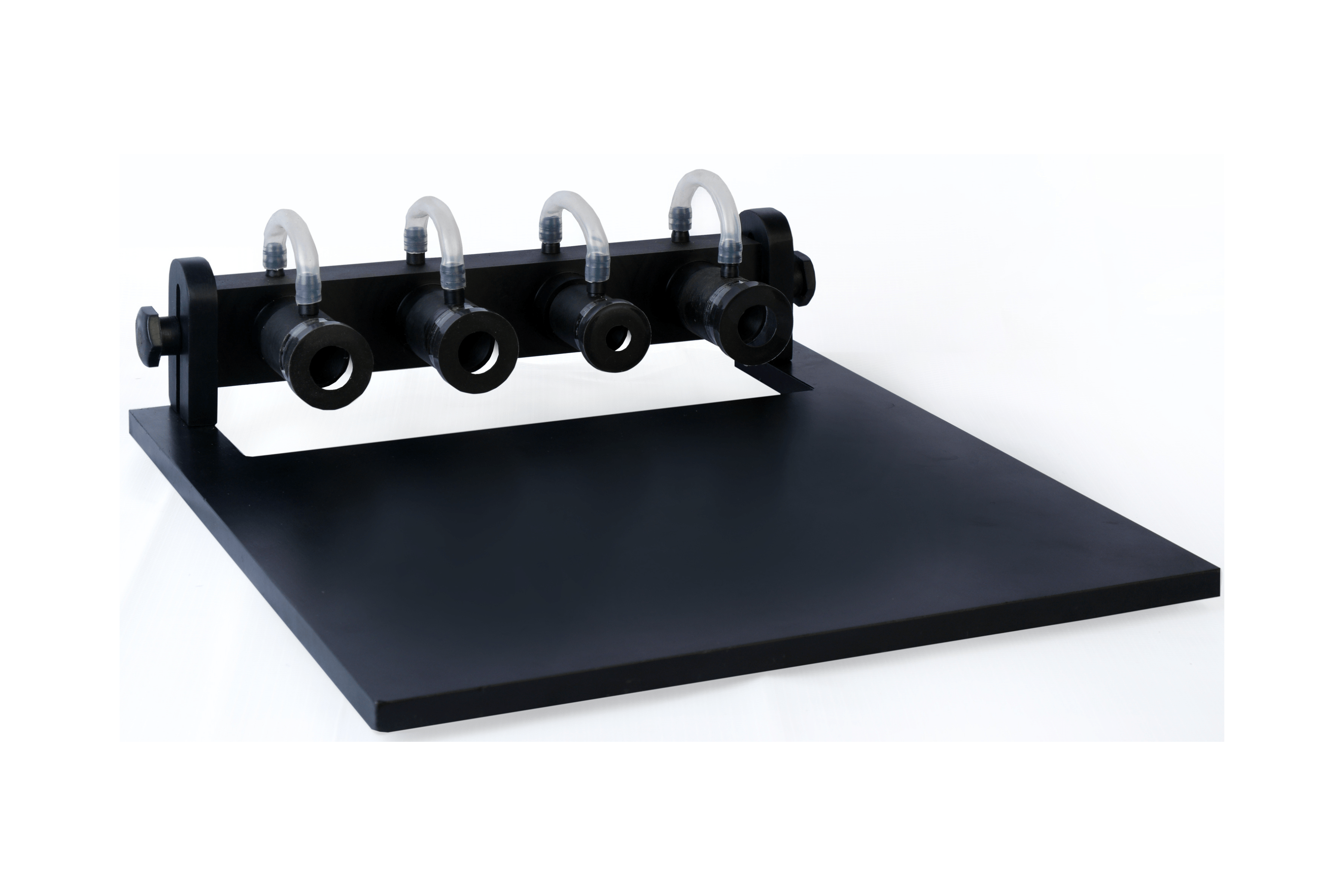

Manifold for Multiple Masks
The manifold allows the connection of up to 5 nose masks of mice or up to 3 nose cone masks of rats respectively to one anesthesia system for simultaneous operation.
Each manifold has provision to make connection to Gas Evacuation System so that waste gas from all masks can be evacuated.
| Product | Product Code |
| Five Channel Manifold – suitable for 5 mouse masks/ 3 rat masks | NCT-5 |
Non-breathing circuits
Ayre’s T-piece breathing circuit (Mapleson E) offer advantage of low dead space as well as low resistance to breathing, which is very important when we consider anesthesia in small animals.

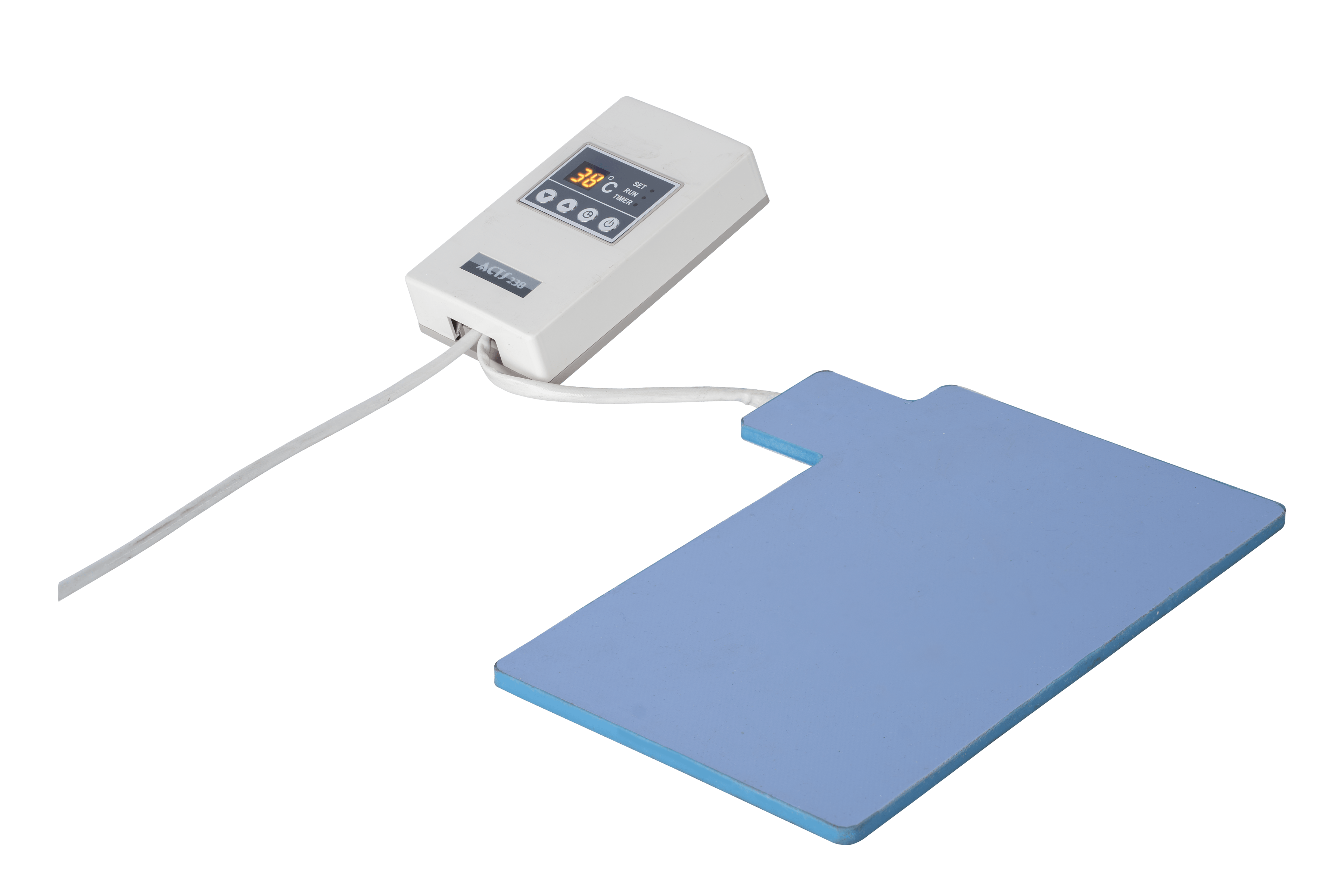

Heating Blanket
The heating pad helps to keep rodent warm during anesthesia and thus prevent hypothermia. Pad is made of silicon foam for uniform heat distribution and temperature is controlled using a digital temperature controller. Temperature of 25°C, 30°C, 35°C & 40°C can be set on the digital temperature controller.
| Product Code | Dimensions | Cable Length | Power requirement |
| HBLD-02 | 240 x 140mm | Cable length between temperature controller
and heating pad: 170mm. Cable length from controller to mains supply: 830mm |
220V AC |
Oxygen Source
An oxygen source is needed for anesthesia procedure and usually it’s an oxygen tank. Orchid has provided two options to client eliminating need of Oxygen tank.

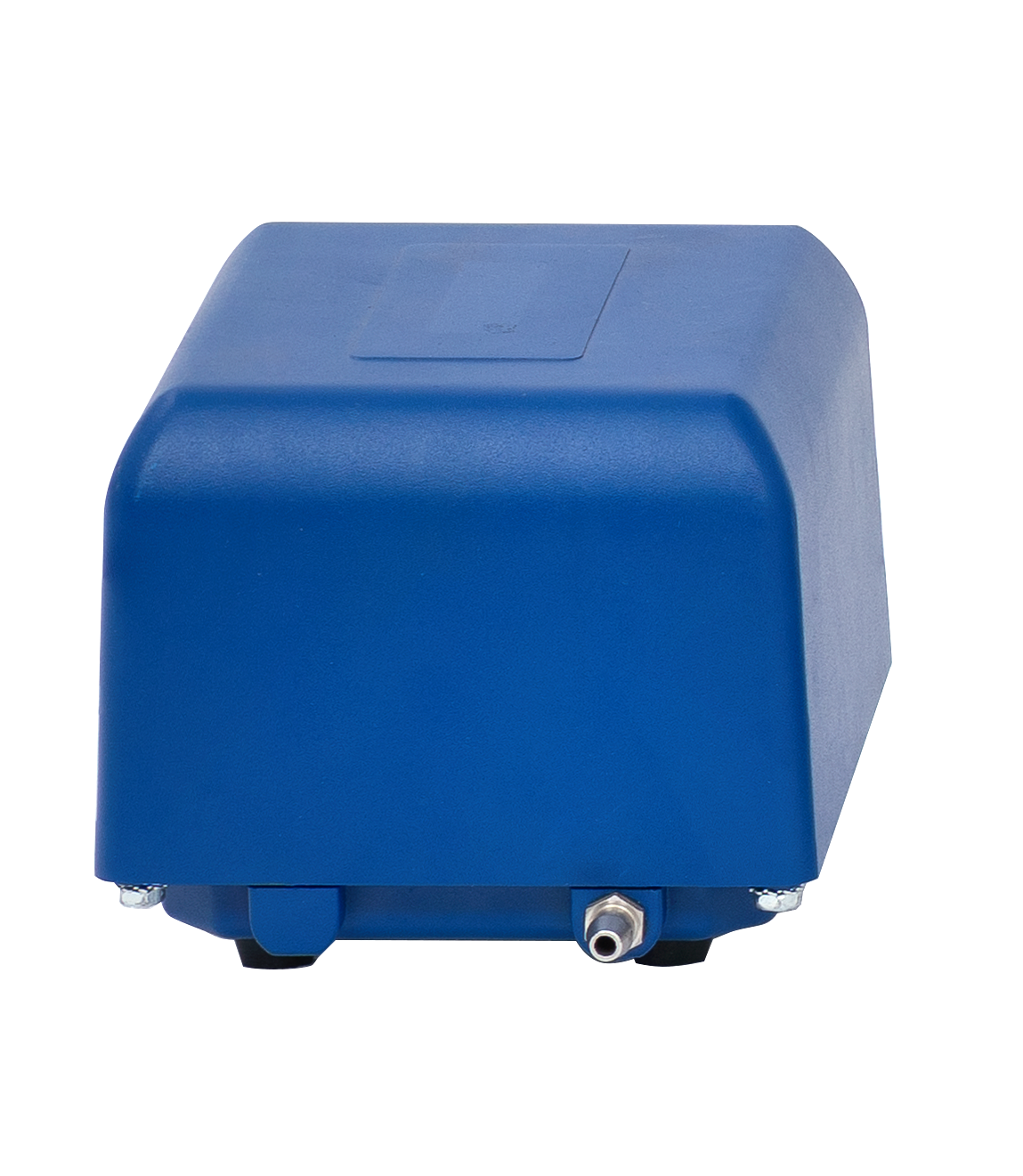

a.Air pump:
Low noise air pump with stable, safe and reliable performance.
Compact design and easy to transfer Voltage: 110/220V AC

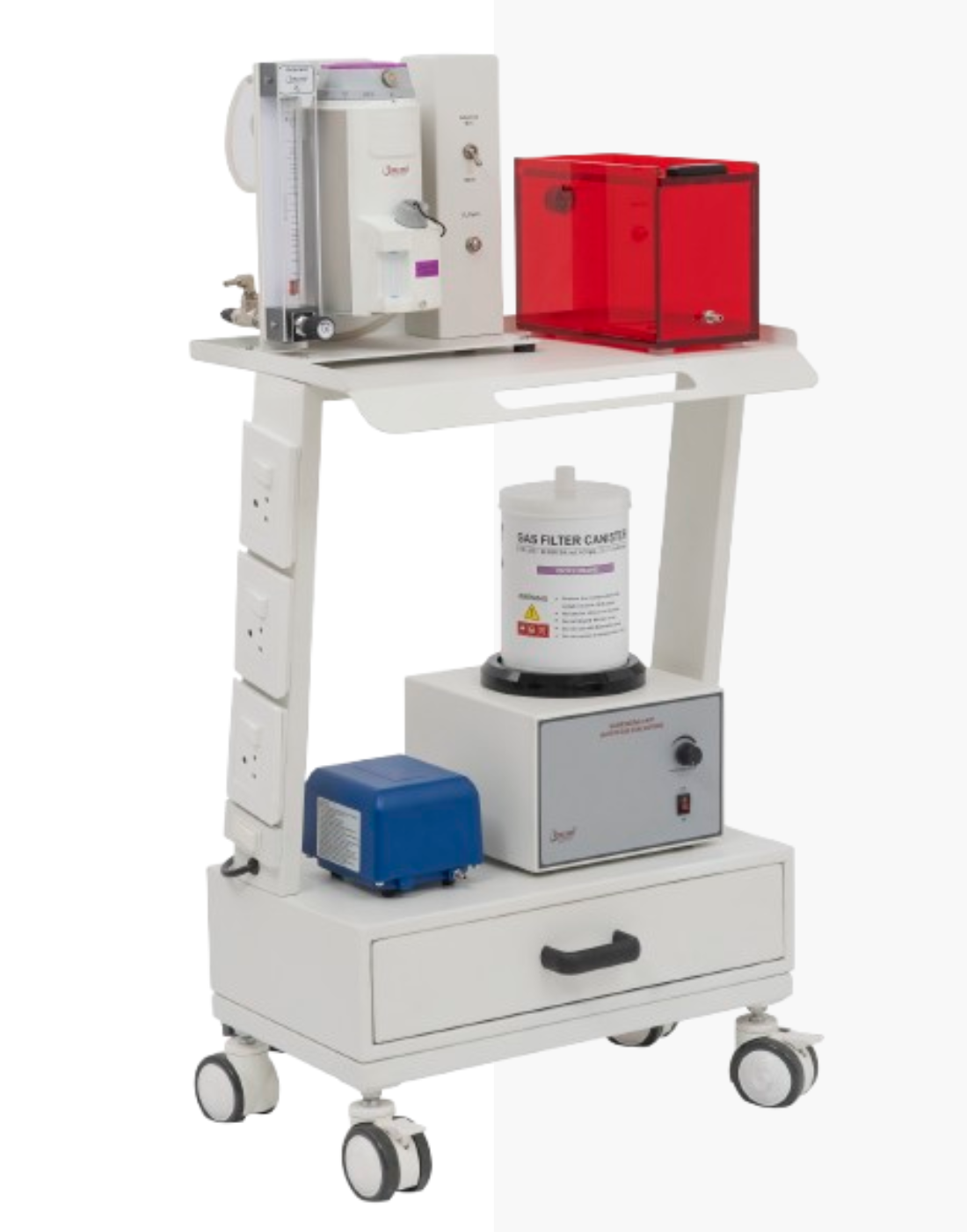

Stainless Steel Trolley for Anesthesia System
Orchid has designed special trolleys for carrying Veterinary anesthesia system with provision to mount main console and also foldable shelves for placing Induction Chambers, Nose Cone Mask and Gas Evacuation Apparatus. Trolley also has provision to held 10ltr capacity oxygen cylinder.
Trolley has four castor wheels out which two are with brake and two are without brake.
| Product | Product Code |
| Stainless Steel Trolley with castor wheels for above system with provision to hold oxygen cylinder of 10 ltr capacity and 3 foldable shelves, Suitable for Anesthesia System | TR-AVM |

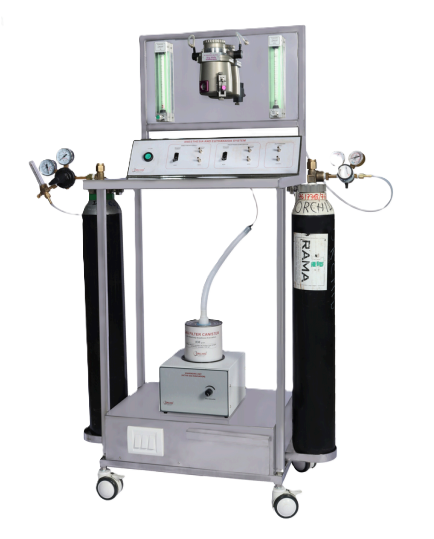

Anesthesia and Euthanasia System
Orchid has designed an Anesthesia and Euthanasia System which is suitable to carry out anesthesia as well as euthanasia procedures on small rodents. Each system includes a trolley mounted with Tec 3 Isoflurane vaporizer, Oxygen and Carbon dioxide flowmeter. The control panel is mounted with different options like quick flush switch for flushing oxygen, induction chamber or nose cone mask selection switch, active or passive evacuation switch and euthanasia supply and exhaust ports. This trolley is also fitted with three electrical sockets with switches for connecting the evacuation system, heating blanket or air pump. Trolley is fitted with four castor wheels for ease of movements.
Features
- Made of stainless steel 304 material
- Single system for anesthesia and euthanasia operation
- Fitted with all control panel switches, inlet and outlet ports at single place giving ease of operation
- Fitted with electrical sockets for connecting evacuation system, air pump or heating blanket.
- Fitted with drawer at bottom for keeping accessories
- Provision to fix cylinders on the same trolley
| Product | Product Code | Accessories included/ mounted | Optional |
| Anesthesia Euthanasia System | AES Ultra 01 | Stainless steel trolley, Tec 3 isoflurane vaporizer, oxygen flowmeter, carbon dioxide flow meter, end caps, quick flush switch, key fill adaptor.Three electrical sockets with switches and stainless steel drawer are mounted on the trolley. Fitted with castor wheels for ease of movement. |
|
