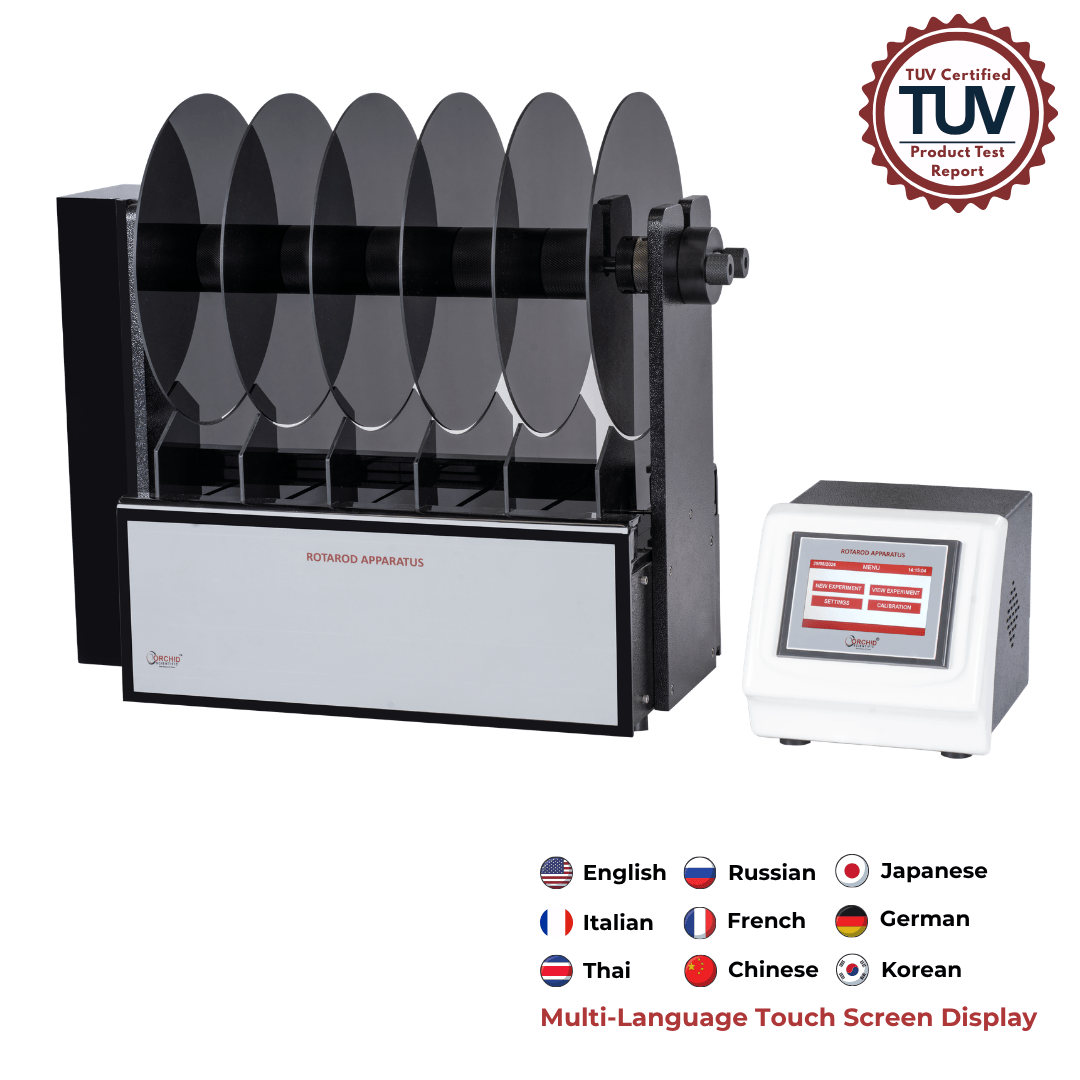

Rotarod (Acceleration Mode)

“To evaluate drug effects on motor coordination, balance and motor learning in rodents”

Rotarod test is widely used to evaluate the effect of drug on motor coordination, balance and motor learning in rodents. The principle of this test is that rats or mice are first trained to walk on a rod rotating at a certain speed. Once the animals have learned this, the effect of a test-compound on their motor performance is evaluated. Animals experiencing impaired motor coordination are unable to cope with the rotating rod and will drop off when the rotation speed exceeds their motor coordination capacity. When the animal drops from rod safely into its own lane, the time latency to fall is automatically recorded.

Features

  • Same instrument can be used for mice as well as rat just by changing the rotor
  • Five compartment model
  • Six modes of operation (Normal /Acceleration 1/ Acceleration 2/ Reverse Acceleration/ Multistep/ Rocking)
  • Animal selection facility (Mice/Rat)
  • Forward & reverse direction of rotation
  • Facility of compartment coding (001 to 999)
  • Individual lane timers (0-999.9sec) with resolution of 0.1s
  • Precise data of falling time, falling speed and distance travelled
  • Electronic rod speed adjustment- constant speed (0.1 to 80.0 RPM)
  • Password protected software and admin features
  • Software for data collection & report generation
  • Calibration report generation facility in the software
  • Graphical presentation of data
  • Provision to add experiment Title & comment
  • Data can be converted to excel & Pdf file for further analysis
  • Normal Mode

  • Fixed speed selectable from 0.1 to 80 rpm can be set.
  • Acceleration Mode I:

  • User can set the speed to be achieved in selected acceleration time starting from 0 rpm. For example, if user sets End speed as 40 and acceleration time as 60 sec then, rotor will start from 0 rpm; individual lane timers will also start same time and rotor will reach 40 rpm speed in 60 seconds. Once rotor achieves 40 rpm, it will continue at 40 rpm up to the cutoff time.
  • Acceleration Mode II:

  • User can set the speed to be achieved in selected acceleration time starting from 0 rpm. Lane timers will start at the time when rotor achieves the speed of 1/10th of the End Speed. As the animal falls, time measurement of the corresponding lane will stop.
  • For example, if user sets End Speed as 40 and acceleration time as 60 sec then, rotor will start from 0 rpm and will achieve 1/10th of End speed as 4rpm. Rotor will keep rotating at 4rpm and as user selects Start key, individual lane timers will start and rotor will reach 40 rpm speed in 60 seconds. Once rotor achieves 40 rpm, it will continue at 40 rpm up to the cutoff time.
  • Reverse Acceleration Mode

  • In Reverse Acceleration Mode the rotor will start rotating from start rpm and will achieve the end rpm in given ramp time with selected direction of rotor. After rotor achieves the end rpm it again starts decreasing towards start rpm and reach start rpm in same ramp time interval. Then it wait for 1 sec and again reach to end rpm in same ramp time interval in reverse direction. After rotor achieves end rpm it again starts decreasing towards start rpm and reach start rpm in same ramp time interval.
  • Multistep Mode

  • In multistep mode, user can Set the 5 different RPMs and Ramp time and the system will rotate at selected rpm w.r.t to individual Ramp time.
  • Rocking Mode

  • In this mode rotor rotates in forward direction with no. of selected revolution with set speed and again the rotor rotates in reverse direction with no. of selected revolution with set speed and continue till cutoff time.
Parameter Mode
  Normal Acceleration I Acceleration II
Speed 0.1-80 rpm (selectable fixed) 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80 rpm 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80 rpm
Acceleration Time N.A. 60, 120, 180, 240, 300 sec 60, 120, 180, 240, 300 sec
Cut Off Time 1.0 sec to 999.9 sec 301.0 sec to 999.9 sec 301.0 sec to 999.9 sec
Parameters recorded Date, Mode, Test number, End speed, Acceleration time, Start and End time, Falling speed, Time spent on rotar, Distance travelled.

This product may also be searched with keywords as Rota rod, Accelerating rotarod, rotarod test for rat and mice, rotarod test for mice and rat, rotarod test for mouse

System Specification & Models

Specifications Model
  RR02-M RR02-R RR02 RR02 IR
Animal Mouse Rat Mouse & Rat Mouse & Rat
Number of lanes 5 4 5 5
Rotor Speed Accuracy ±1.0 rpm
Rotor Speed Resolution 0.1 rpm
Falling Time 0-999.9sec (resolution-0.1sec)
Distance Travelled 0.1 cm to 99999.9 cm
Rotor Diameter 30 mm



60 mm Mouse: 30 mm

Rat: 60 mm

Mouse: 30 mm

Rat: 60 mm

Lane Width 57 mm 87 mm Mouse: 50 mm

Rat: 76 mm

Mouse: 50 mm

Rat: 76 mm

Falling Height 180mm 320mm Mouse: 225mm

Rat: 240mm

Mouse: 225mm

Rat: 240mm

Lane Separator Diameter 250mm 310mm 290mm 290mm
Fall Detection Sensor Plate type Plate type Plate type Infra red
Overall Dimension

(LxWxH)

580mm X 300mm X 465mm 580mm X 310mm X 510mm 580mm X 300mm X 520mm 580mm X 300mm X 520mm
Display 4.3 inches TFT, Touch screen
Material of Construction Acrylic
Power requirements 220/230V AC 50Hz

110/120 V AC 50-60Hz*



PC Connectivity By using RS232

*Needs to be specified in order information

Order Information

Model Accessories
RR 02 Basic instrument-1
Mice/Rat rotor as per model selected
Tools for assembling
Software for data transfer
RS232 Cable With Converter

Note: Orchid’s continuing product development makes specifications subject to change without prior notification.
