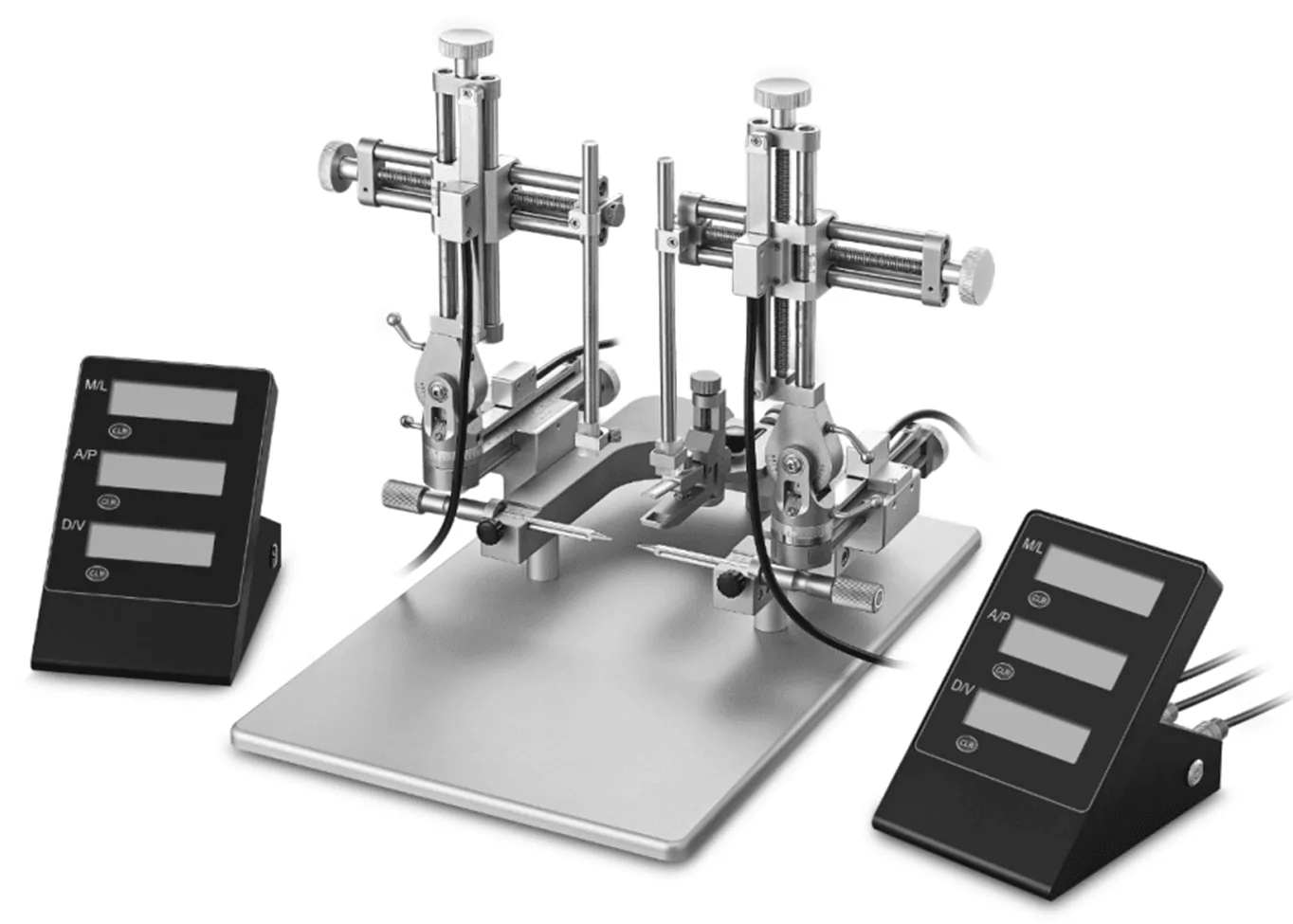

Digital Stereotaxic Instrument (Dual Arm)
The Orchid’s Stereotaxic Instrument is ideal for researchers in need of a versatile, reliable instrument for stereotaxic procedures with small animals. Precision alignment ensures accurate placement of electrodes, Syringe, cannula and other devices. The time-proven ‘U’-Frame design concept, sturdy construction, and adaptability to most model species make this the best choice for a stereotaxic instrument.
Feature
The Digital Stereotaxic Instrument (Dual Arm) is mainly composed of three parts: a Biocontainment ventilator, Biocontainment cage and rack
-
Suitable for different animal adapters, including rats, mice, and guinea pigs.
-
The moving range of the dual operating arms reaches 120 mm up and down, left and right, and front and back.
-
The dual operating arms can move ±90 degrees in both front–back and left–right directions.
-
The horizontal direction can rotate 360 degrees and be locked at any position.
-
Operating accuracy of the dual operating arms on the X, Y, and Z axes: 0.01 mm.
-
The ear rod uses a spiral propulsion structure for easy skull fixation.
-
The micro-propellant provides upper and lower operating accuracy of 0.01 mm.
-
The operating arm features a micrometer-level dial for easier reading.
-
Compatible with optional accessories such as a microinjection pump, micro-camera, and cranial drill.
-
The base uses a honeycomb thread design, allowing installation of dual operating arms or other equipment for various experiments.
-
Laser scale and open base design make readings more convenient.
-
Maintains good accuracy and flexibility across different temperatures.
-
The specially treated surface material is easy to clean and maintains long-term cleanliness.
| Parameters | Description |
| Animal Compatibility | Adaptable to rats, mice, birds, and guinea pigs |
| Dual-Arm Mobility | Range: ±120 mm (vertical, lateral, horizontal) |
| Rotation Range |
Front/Back: ±90° Left/Right: ±90° Horizontal: 360° (lockable) |
| Precision | 0.01 mm resolution (X/Y/Z axes) |
| Skull Fixation | Helical ear bars for rapid cranial stabilization |
| Base Plate | 450 × 300 mm |
| Micro-Drive Precision | 0.01 mm vertical adjustment |
| Micrometer Scale | Vernier dials for easy reading |
| Compatibility | Works with microinjection pumps, microscopes, and cranial drills |
| Design Features |
Laser-etched scales Open base design |
| Motion Mechanism | Dovetail groove + lead screw for smooth, precise 3D movement |
| Temperature Stability | Maintains precision and flexibility across temperatures |
| Material & Cleaning | Anti-stain surface for easy cleaning and durability |
| Weight | Approximately 7 kg |
| Accessories Supplied | The Dual Arm Digital Stereotaxic Instrument comes with two 3-axis digital manipulators (left and right). Accessories like ear bar, adaptors and holders are not supplied with the instrument, user needs to select the accessories as per the requirement. |
